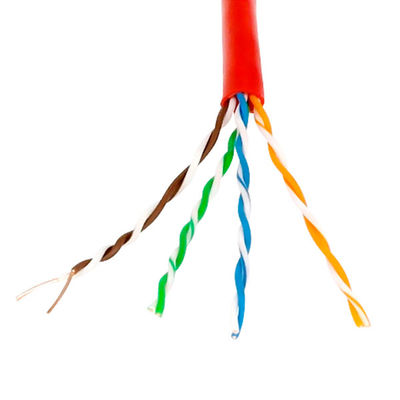

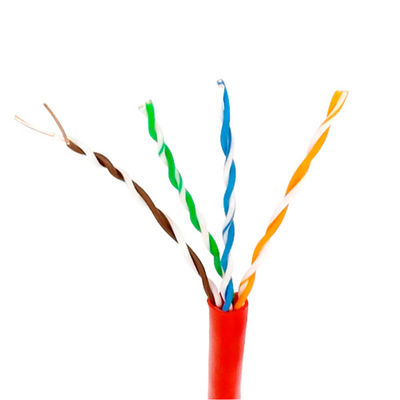

CCA UTP Cat5e Lan Cable manufacturers Customizable Jacket 0.95mm 8 Pairs 305m 1000ft
- INDOOR/OUTDOOR CAT5E PLENUM: CMP-rated 1000ft Cat 5e cable features a durable jacket ideal for both indoor and outdoor use. Made from LSZH materials, the jacket of the Cat5e Plenum Ethernet Cable is thick, safe, and everlasting.
- CCA SOLID CONDUCTOR: 24 Wire gauge unshielded twisted pair conductors of the Cat 5e plenum cable are made from 100% pure copper-clad aluminum. Provides stable performance and the data transfer speed is tested up to 100 MBit/s over 100 meters with a 350 MHz bandwidth. CCA cables are not suitable for PoE.
- FLUKE TESTED: The UTP Cat 5e cable 1000ft is tested with a Fluke DTX-1800 Versiv Cable Analyzer. Entertains minimum crosstalk and provides stable performance with better signal integrity. Cat5e plenum is also RoHS and ISO 9001:2015 certified and follows ANSI/TIA/EIA-568-C. 2 standards. Maximum Compatibility Use the Cat5e patch cable to connect devices on a Local Area Network (LAN), such as laptops, PCs and Mac, network servers, printers, routers, switches, game consoles and more. TIA/EIA T-568B standard wiring. RoHS compliant
|
Item
|
Cat5E Bluk Cable
|
|
Type
|
CAT5E Lan cable
|
|
Shielding structure
|

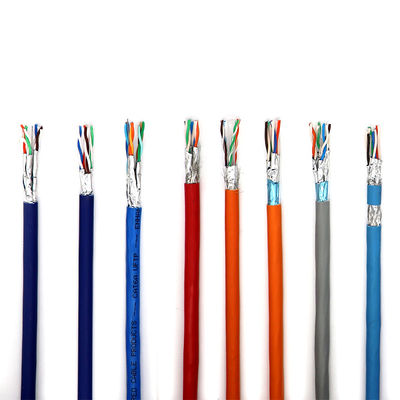

U/UTP, F/UTP, SF/UTP
|
|
Conductor
|
Bare Copper,24 AWG
|
|
Number Of Conductor
|
4 Pairs
|
|
Conductor diameter
|
24AWG/26AWG/28AWG (Customized Available)
|
|
Insulation
|
HDPE
|
|
Filler
|
PE Cross or FM-PE Thin slice
|
|
Shield (FTP and SFTP)
|
Mylar + AL-foil
|
|
Braiding( SFTP)
|
64,80 or 96*0.12mm ALM, 0.1mm TC (Customized Available)
|
|
Drain wire(FTP and SFTP)
|
0.4mm ,TC, CCA,TCCS
|
|
Jacket
|
PVC, LSZH, PE (outdoor), PVC+PE double sheath
|
|
Flame Ratardancy
|
CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca
|
|
Color
|
As client’s request
|
|
Length
|
305m/1000ft per pull box or Drum spool
|
|
Test
|
100% Passed the FLUKE 90M link and 100M channel test
|
|
Reference Standard
|
YD/T1019-2001,ISO/IEC 11801,ANSI/TIA/EIA-568B,UL444
|
|
Certificates
|
CE, RoHS,ISO9001
|
|
Customizing
|
Color of PVC jacket, words on cable & packaging customized on customers' request
|
|
Blue Eyes Cat Company
Product conductor diameter and over-testing standards
|
|
Product
|
Conductor
|
Conductor Diam.
|
I.D
|
O.D
|
Weight
(approx.)
|
Min passable test standard
|
Packaging
|
|
AWG
|
(mm)
|
(mm)
|
(mm)
|
(K.G)
|
TIA 568-C.2
|
ISO 11801
|
305M
(1000ft)
|
|
CAT.5E UTP
|
24AWG
|
1/0.45
|
0.82
|
4.6
|
9
|
FLUKE 90 M permanent link
|
Class D
|
Pull box
|
|
24AWG
|
1/0.46
|
0.84
|
4.7
|
9.3
|
|
24AWG
|
1/0.47
|
0.85
|
4.8
|
9.5
|
|
24AWG
|
1/0.48
|
0.86
|
4.8
|
9.8
|
|
24AWG
|
1/0.49
|
0.87
|
4.9
|
10
|
|
24AWG
|
1/0.50
|
0.88
|
5.0
|
10.2
|
|
24AWG
|
1/0.51
|
0.90
|
5.1
|
10.5
|
|
CAT.5E FTP
|
24AWG
|
1/0.48
|
0.97
|
5.8
|
13
|
FLUKE 90 m permanent link
|
Class D
|
Wooden spool
|
|
24AWG
|
1/0.49
|
0.98
|
5.9
|
13.3
|
|
24AWG
|
1/0.50
|
1
|
6.0
|
13.6
|
|
24AWG
|
1/0.51
|
1.01
|
6.2
|
14
|
|
CAT.5E SFTP
|
24AWG
|
1/0.48
|
0.97
|
6.0
|
14
|
FLUKE 90 m permanent link
|
Class D
|
Wooden spool
|
|
24AWG
|
1/0.49
|
0.98
|
6.1
|
14.3
|
|
24AWG
|
1/0.50
|
1
|
6.2
|
14.7
|
|
24AWG
|
1/0.51
|
1.02
|
6.3
|
14.9
|
|
PS. The above conductor diameter is copper wire straight material conductor, after production stretching tolerance within ±0.01mm,
if you need to press the full core conductor need to press +0.01mm under the material
|
Note
BC: Bare Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminum
Rated Temperature:75°C
Various lengths and colors are available
Customers' specifications are welcomed.
Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by Sea. Other delivery methods are available upon request from clients.
Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
What is the process of an order?
Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...
Good after-Sale Service
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
3. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
4. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. The OEM bulk order will be accept as well
