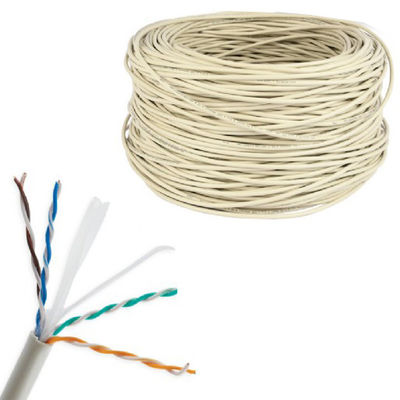

Product Details:
|
Type: | Unshielded Twisted Pair (UTP) LAN Cable | Number Of Conductors: | 8 |
---|---|---|---|
Conductor Size: | 23AWG 0.55mm | Conductor Material: | Pure Bare Copper |
Insulation: | HD-PE | Jacket Material: | PVC Or LSZH |
Color: | Black, White, Blue, Grey,Red | Length: | 305m/1000ft Box Per Pull Box |
Packing: | 2 Box / Carton | ||
Highlight: | Indoor Patch Cord UTP Cat 6,Grey Patch Cord UTP Cat 6,Pure Copper LSZH CAT6 Cable |
Not all Ethernet cable is created equally. What's the difference, and how do you know which you should use? Let's look at the technical and physical differences in Ethernet cable categories to help us decide.
Ethernet cables are grouped into sequentially numbered categories (“ CAT ”) based on different specifications; sometimes the category is updated with further clarification or testing standards (eg 5e, 6a 7/8). These categories are how we can easily know what type of cable we need for a specific application. Manufacturers are required to adhere to the standards, which makes our lives easier.
What are the differences between the categories and how can you know when to use unshielded, shielded, stranded, or solid cable? Keep reading f or “cat”-like enlightenment.
Features
UTP unshielded LAN cable with solid wires
High quality full copper conductors
Category 6
Specifications
Unshielded twisted pair (UTP) LAN cable
Category 6
Conductor material: 23AWG 0.55mm Pure Bare Copper
HDPE insulation of the wire: 1.0 mm
outer insulation: 6.0 mm
Operation up to 250 MHz High-speed 1Gbps
Length: 1000 ft (305 m)
Package: Reelex box
Color: black, white, blue, grey
Conductor resistance (max): 90 ohm/ 1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: <100m
CAT6
|
|

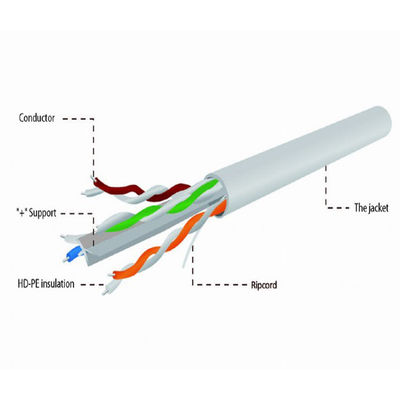

Shielding structure
|
U/UTP
|
Conductor
|
CCA/ Bare Copper,24 AWG / 23 AWG
|
Conductor diameter
|
1/0.50mm, 1/0.52mm, 1/0.53mm,1/0.54mm, 1/0.55mm, 1/0.56mm, 1/0.57mm
|
Insulation
|
HDPE
|
I.D(mm)
|
1.0±0.05mm
|
Filler
|
PE Cross or FM-PE Thin slice
|
O.D(mm)
|
6.2±0.4mm
|
Jacket
|
PVC, LSZH, PE (outdoor), PVC+PE double sheath
|
Flame Ratardancy
|
CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca
|
Color
|
As client’s request
|
Length
|
305m/1000ft per pull box
|
Customizing
|
Color of PVC jacket, words on cable & packaging customized on customers' request
|
Test Reference Standard
|
TIA/EIA 568-C.2; ISO11801 Class E,100% Passed the FLUKE 90M link and 100M channel
|
Max Frequency
|
Standard 250MHZ, Dehui production can be up to 550MHZ
|
Note
BC: Bare Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminum
Rated Temperature:75°C
Various lengths and colors are available
Customers' specifications are welcomed.
All Network Lan Cable pass FlukeTest 100%
Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by Sea. Other delivery methods are available upon request from clients.
Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
What is the process of an order?
Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...
Good after-Sale Service
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
3. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
4. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. The OEM bulk order will be accept as well
Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8
