UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External

Certification
China Dongguan Blue Eye Cat Technology Co., Ltd. certification
China Dongguan Blue Eye Cat Technology Co., Ltd. certification
I'm Online Chat Now

UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External

UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External
UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External

Large Image :  UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External

Product Details:
Place of Origin: P.R.C
Brand Name: Blue Eyes Cat/OEM/ODM
Certification: RoHS REACH CE UL
Model Number: BEC 5106
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 97USD
Packaging Details: Individual package size LxWxH: 400*400*240mm Carton size LxWxH: 490x430x420 mm
Delivery Time: 7-12working days
Payment Terms: T/T, Western Union
Supply Ability: 10000

UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External

Description
Type: Unshielded Twisted Pair (UTP) LAN Cable Number Of Conductors: 8
Conductor Material: HD-PE Jacket Material: PVC
Color: Black, White, Blue, Grey,Red Length: 305m/1000ft Box Per Pull Box
Packing: 2 Box / Carton
High Light:

CCA Cat5e Lan Cable

,

305m Cat5e Lan Cable

,

External CCA Cat5e Cable

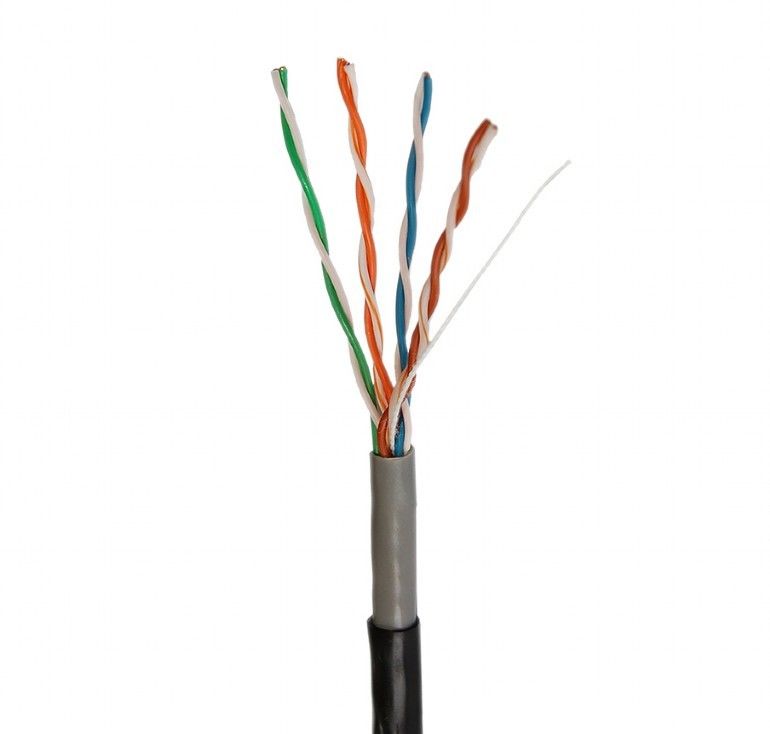

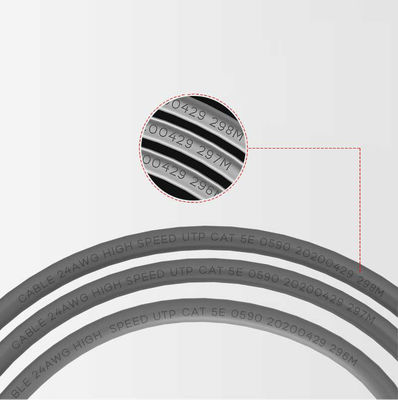

UTP CCA Cat5e Cable 305m UTP Double Jacket Outdoor External UTP LAN Cable



Speed, Stability and Performance All Rolled Into One Superior Ethernet Cable
Crafted with premium bare copper wire and boasting 350Mhz speeds, it’s no wonder why companies around the world are turning to fast Cat. for blazing fast networks they can rely on. At Blue-Eyes-Cat., we’re on a mission to bring you high-performance cable options with all the details that make installations fast and easy. From high-caliber conductors to interference-reducing features and an improved cable dispensing system, upgrading your network never felt so good.



Features

UTP unshielded LAN cable with solid wires
High quality full copper conductors
Category 5e



Specifications

Unshielded twisted pair (UTP) LAN cable
Category 5e

Conductor material:BC, CCC, CCA, CU, CCS, CCAU
Conductor Size: 24AWG 0.51mm
Length: 1000 ft (305 m)
Package: Reelex box
Color: black, white, blue, grey
Conductor resistance (max): 90 ohm/ 1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: <100m



AWG (Gauge)
23AWG/24AWG/26AWG
Conductor Material CCA, CCAG, CCU, BC
Jacket Material
PVC, LDPE,LSZH
Shiled
U/UTP, F/UTP, SF/UTP. S/FTP
Color Grey,Red, White,Bklack, Or Customized
Certification CE/ROHS/FCC/ISO9001
Flammability Grade CMP,CMR,CM,CMG,CMX
Application PC,ADSL,network Module Plate,Wall Socket,etc



Note

BC: Bare Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminum
Rated Temperature:75°C
Various lengths and colors are available
Customers' specifications are welcomed.



All Network Lan Cable pass FlukeTest 100%

UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External 0

UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External 1

UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External 2

UTP CCA Cat5e Lan Cable Length 305m Double Jacket For External 3





Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by Sea. Other delivery methods are available upon request from clients.



Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.


What is the process of an order?
Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...





Good after-Sale Service

1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
3. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
4. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
