Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable

Certification
China Dongguan Blue Eye Cat Technology Co., Ltd. certification
China Dongguan Blue Eye Cat Technology Co., Ltd. certification
I'm Online Chat Now

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable
Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable

Large Image :  Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable

Product Details:
Place of Origin: P.R.C
Brand Name: Blue Eyes Cat/OEM/ODM
Certification: RoHS REACH CE UL
Model Number: BEC 6104
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: Individual package size LxWxH: 400*400*240mm Carton size LxWxH: 490x430x420 mm
Delivery Time: 7-12working days
Payment Terms: T/T, Western Union
Supply Ability: 10000

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable

Description
Type: FTP LAN Cable Number Of Conductors: 8
Conductor Size: 23AWG 0.57mm Conductor Material: Pure Bare Copper
Insulation: HD-PE Jacket Material: PVC /LSZH
Color: Black, White, Blue, Grey,Red Length: 305m/1000ft Box Per Pull Box
Packing: 2 Box / Carton
High Light:

Blue CAT6 FTP Cable

,

0.57mm CAT6 FTP Cable

,

Practical Pure Copper Cat6 Cable

Cat6 Category 6 Lan Cable FTP Pure Copper CU 4PR 23AWG 0.57mm Network Cable Blue

  • 【1000Mbps High Speed】 Cat6 ethernet cable with high bandwidth up to 1000Mbps(1Gbps) and 250 MHz data, ensure high-speed data transfer for server applications, cloud storage, online HD video streaming and gaming.
  • 【RJ45 Connectors & Widely Compatible】 Gigabit Cat6 internet cable with gold-plated RJ45 connector, perfectly compatible with computer routers, modems, switch, PC, laptops, PS4, PS3, X-Box 360, X-Box One, Coupler, Hubs, Keystone jack, Smart TV, Imac and other devices, also backwards compatible with Cat5.

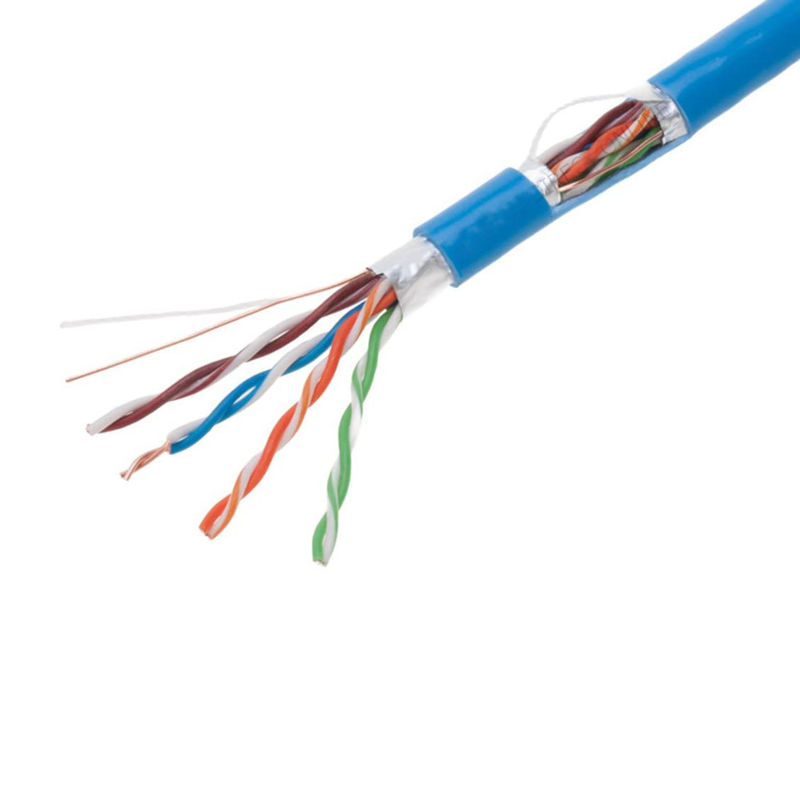

  • 【FTP Excellent Anti-Interference】 Cat 6 patch cord cable are made of 26 AWG 100% bare copper wire, 4 foiled twisted pairs(FTP) verified to TIA/EIA 568-B. 2 and aluminum foil shielding layer, provides better protection from crosstalk, noise and interference, increase the security and reliability of the data transfer.
  • 【Durable and Flexible PVC Jacket】 Cat6 network cable with enviromental protection PVC thickened outer cover protects the inner core from damage, wear resistance and bending resistance; And the soft tap help us plug easier, no need vigorous insertion.
  • 【Optional Lengths】 Blue Eyes Cat Category 6 LAN cable offers different lengths for you to meet your need. 5ft/6.6ft/10ft/25 ft/33ft/40ft/50 ft/66ft are optional. 24 Hours welcoming customer service. If there any problems please feel free to contact us, we will try our best to fix it.



Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable 0Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable 1

Item
Indoor F/UTP Cat6 Cable 305m
Type
CAT6
Shielding structure
F/UTP
Conductor
Bare Copper,23 AWG
Number Of Conductor
4 Pairs
Conductor diameter
1/0.53mm, 1/0.54mm, 1/0.55mm, 1/0.56mm, 1/0.57mm, 1/0.58mm (Customized Available)
Insulation
HDPE/ FM-PE
Shield
Mylar + AL-foil
Drain wire
0.4mm ,TC, CCA,TCCS
Jacket
PVC, LSZH, PE (outdoor), PVC+PE double sheath
Flame Ratardancy
CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca
Color
As client’s request
Length
305m(1000ft )/Drum
Packing
Wooden spool(wooden drum)
Test
100% Passed the FLUKE 90M link and 100M channel test
Reference Standard
YD/T1019-2001,ISO/IEC 11801,ANSI/TIA/EIA-568B,UL444
Certificates
CE, RoHS,ISO9001
Customizing
Color of PVC jacket, words on cable & packaging customized on customers' request
Customizing
Color of PVC jacket, words on cable & packaging customized on customers' request





Blue Eyes Cat Company
Product conductor diameter and over-testing standards
Product
Conductor
Conductor Diam.
I.D
O.D
Weight
Min passable test standard
Packaging
AWG
(mm)
(mm)
(mm)
(K.G)
TIA 568-C.2
ISO 11801
305M
(1000ft)
CAT.6 FTP
24AWG
1/0.53
1.05
7.0
15.4
FLUKE 90 m permanent link
Class E
Wooden spool
23AWG
1/0.54
1.08
7.0
15.6
23AWG
1/0.55
1.1
7.1
16
23AWG
1/0.56
1.2
7.3
16.4
23AWG
1/0.57
1.13
7.5
16.6
23AWG
1/0.58
1.14
7.5
17
PS. The above conductor diameter is copper wire straight material conductor, after production stretching tolerance within ±0.01mm,
if you need to press the full core conductor need to press +0.01mm under the material



Note

BC: Bare Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminum
Rated Temperature:75°C
Various lengths and colors are available
Customers' specifications are welcomed.

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable 2



All Network Lan Cable pass FlukeTest 100%

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable 3

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable 4

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable 5

Blue 0.57mm CAT6 FTP Cable , Practical Pure Copper Cat6 Cable 6





Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by Sea. Other delivery methods are available upon request from clients.



Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.


What is the process of an order?
Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...





Good after-Sale Service

1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
3. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
4. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.


FAQ
Q1: Are you a factory or trading company?
A1: We are a manufacturer.
Q2: Where is your factory located? How can I visit there?
A2:Our factory are located in dongguan city.
You can fly to Guangzhou international airport. And tell us your flight No. We will arrange to pick you up.
Q3: May I buy samples from you?
A3: Yes! You are welcome to place sample order to test our superior quality and services.
Q4: What is your Warranty?
A4: All the products will have 12 months Warranty
Q5:What payment method do you accept?
A5:T/T(Bank transfer), , Money Gram, Paypal, etc.
Q6: Can you put my brand name (logo) on these products?
A6: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q7: May I know the status of my order?
A7: Yes .The order information and photos at different production stage of your order will be sent to you and the information will be updated in time.
Q8: What’s the leading time? (How long do you need to prepare my goods?
A8: Delivery (no more than 1000pcs) will be arranged within 3-7 days after payment, and arrive you within about 3-7 working days via international express.
Q9: How will you deliver my goods to me?
A9: Your purchases will be delivered by DHL, UPS, FedEx, TNT, EMS your door. Air Cargo and Sea Cargo, Direct line, Air Mail also be accepted according to clients' request.
Q10: Can you provide us more other products to us to help us to save more shipping costs?
A10: Yes. ]The OEM bulk order will be accept as well


Our Factory Are Professional Manufacturer In Producing Widely Product Range Cat5/Cat5e/Cat6/Cat6a/Cat7/Cat8
Utp/Ftp/Sftp/Stp Network Cable,





If you have any questions, please contact with us directly. Welcome to visit our factory.
