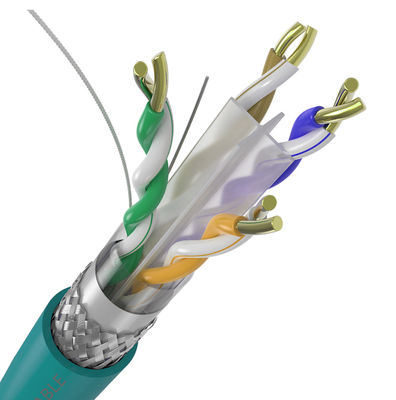

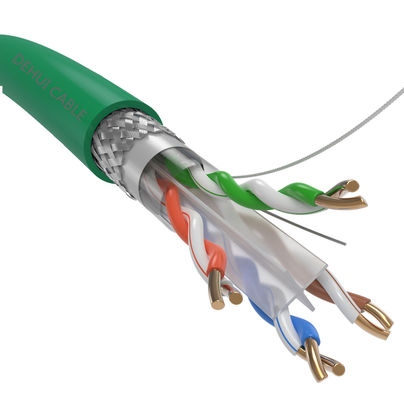

Ethernet Cat6a Lan Cable Facotry In China Double Shield STP FTP 4pair 23AWG 550Mhz RJ45
Product description:
1: Six types of wire are made of 23AWG pure oxygen-free copper as conductor, which has the characteristics of oxidation resistance and long service life.
2: The transmission frequencies of the six types of cables are 1 MHz to 250MHz. The PS-ACR of the six types of cabling systems at 200 MHz should have a large margin, which provides two times the bandwidth of the five types. The transmission performance of the six types of cables is much higher than that of the five types of standards, which is suitable for applications with transmission rates higher than 1 Gbps.
3: Six types of wire can be divided into unshielded twisted pair (UTP) and shielded twisted pair (FTP). The outer layer of shielded twisted pair cable is wrapped by aluminium platinum to reduce radiation, but it can not completely eliminate radiation. The price of shielded twisted pair cable is relatively high, and it is more difficult to install than unshielded twisted pair cable.
Application of the product:
It can be used for circuit conversion and connection of communication equipment and other electronic equipment. The product is equipped with wiring rack/module/computer, etc. The mating relationship requires the use of the same standard series of connectors. Applied to LAN equipment, data communication, office computer Internet access, integrated wiring (mainly used for network interface information point jump/transfer, etc.)
Electrical performance:
working voltage: 12 V, 100% through FLUKE test.
Fifth, physical performance:
insertion force is not more than 20N, pull-out force is not less than 20N; connector connecting device effect: 50N 60 ± 5s; plug and socket socket number: 750 times.
Use and storage environment:
temperature: -40~+70℃; humidity: <85% (temperature 85℃±3℃)
|
Item
|
Indoor F/UTP Cat6 Cable 305m
|
|
Type
|
CAT6 FTP
|
|
Shielding structure
|
F/UTP
|
|
Conductor
|
Bare Copper,23 AWG/24AWG
|
|
Number Of Conductor
|
4 Pairs
|
|
Conductor diameter
|
1/0.53mm, 1/0.54mm, 1/0.55mm, 1/0.56mm, 1/0.57mm, 1/0.58mm (Customized Available)
|
|
Insulation
|
HDPE
|
|
Shield
|
Mylar + AL-foil
|
|
Drain wire
|
0.4mm ,TC, CCA,TCCS
|
|
Jacket
|
PVC, LSZH, PE (outdoor), PVC+PE double sheath
|
|
Flame Ratardancy
|
CM,CMX,CMR,CMP,Fca,Eca,Dca,Cca,B2ca
|
|
Color
|
As client’s request
|
|
Length
|
305m(1000ft )/Drum
|
|
Packing
|
Wooden spool(wooden drum)
|
|
Test
|
100% Passed the FLUKE 90M link and 100M channel test
|
|
Reference Standard
|
YD/T1019-2001,ISO/IEC 11801,ANSI/TIA/EIA-568B,UL444
|
|
Certificates
|
CE, RoHS,ISO9001
|
|
Customizing
|
Color of PVC jacket, words on cable & packaging customized on customers' request
|
|
Customizing
|
Color of PVC jacket, words on cable & packaging customized on customers' request
|
|
Blue Eyes Cat Cable Company
Product conductor diameter and over-testing standards
|
|
Product
|
Conductor
|
Conductor Diam.
|
I.D
|
O.D
|
Weight
|
Min passable test standard
|
Packaging
|
|
AWG
|
(mm)
|
(mm)
|
(mm)
|
(K.G)
|
TIA 568-C.2
|
ISO 11801
|
305M
(1000ft)
|
|
CAT.6 FTP
|
24AWG
|
1/0.53
|
1.05
|
7.0
|
15.4
|
FLUKE 90 m permanent link
|
Class E
|
Wooden spool
|
|
23AWG
|
1/0.54
|
1.08
|
7.0
|
15.6
|
|
23AWG
|
1/0.55
|
1.1
|
7.1
|
16
|
|
23AWG
|
1/0.56
|
1.2
|
7.3
|
16.4
|
|
23AWG
|
1/0.57
|
1.13
|
7.5
|
16.6
|
|
23AWG
|
1/0.58
|
1.14
|
7.5
|
17
|
|
PS. The above conductor diameter is copper wire straight material conductor, after production stretching tolerance within ±0.01mm,
if you need to press the full core conductor need to press +0.01mm under the material
|
Note
BC: Bare Copper
CCS: Copper Clad Steel
CCA: Copper Clad Aluminum
Rated Temperature:75°C
Various lengths and colors are available
Customers' specifications are welcomed.
All BC Network Lan Cable Pass FlukeTest 100%
Packing & Shipping
1) Packing Lengths: 100/roll, 200m/roll, 300m/roll, 305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
5) Usually we deliverour products by Sea. Other delivery methods are available upon request from clients.
Our service
1) Quick Response -- All inquiries will be replied within 24 hours.
Professional Quotation -- All pricing will be quote according to customers' detailed specifications & requirements.
2) OEM & ODM Service -- Can print your own brand on the cable printing with foot or meter marking. -- Make customized designs for stickers, drums, outer cartons, etc.
3) Stable Quality -- All materials and products passed restrict QC procedures, compliant with international standards.
4) Fast Delivery -- LCL orders, 15 Days after confirmation; FCL orders, 20 days after confirmation.
5) Good After-sales Service -- We chose the fastest vessel to POD for delivery our goods to clients, -- All Documents will be issued according to clients' instructions, to save troubles from local customs. -- Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
What is the process of an order?
Send your detailed request → Feedback with quotation → Confirm quotation and make payment → Make artwork for approval→Make mould→Mold testing→Making samples→Sample testing(Approval) →Mass production→Quality checking→Packing →Delivery →After Service→Repeat Order...
Good after-Sale Service
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
3. Faster delivery
Sample order in stock, and 3-7 days for bulk production.
4. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post.
